Barnett Hyper Raptor BCX Crossbow – 2–7×36 Scope, 425 FPS
$699.99
3 in stock
The exact BAR78238 package is the Barnett Hyper Raptor BCX: a compact 6.9 lb crossbow rated up to 425 fps with a variable 2–7×36 illuminated scope, three 20-inch HyperFlite arrows, rope cocking device, side-mount quiver and TriggerTech anti-dry-fire trigger.
Description
Barnett Hyper Raptor BCX exact-model overview

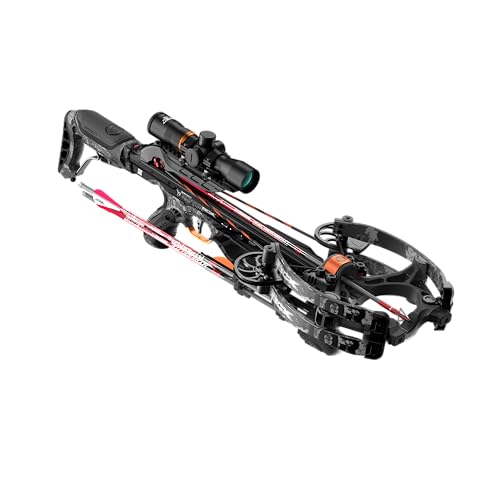

The Barnett Hyper Raptor BCX is a compact hunting crossbow that pairs a 7.25-inch cocked axle-to-axle width with a variable 2–7×36 illuminated multi-reticle scope. Barnett rates BAR78238 at up to 425 feet per second with a 380-grain test arrow, while the adjustable stock, pass-through foregrip and fold-down vertical grip help tailor the handling position.
Manufacturer specifications
| Model / UPC | BAR78238 / 042609782383 |
|---|---|
| Manufacturer-rated speed | Up to 425 fps with a 380-grain test arrow; actual speed varies with total arrow weight and setup |
| Manufacturer-rated kinetic energy | 152 ft-lb with the stated test configuration; changes with projectile mass and velocity |
| Crossbow weight | 6.9 lb |
| Overall length | 32.5 in |

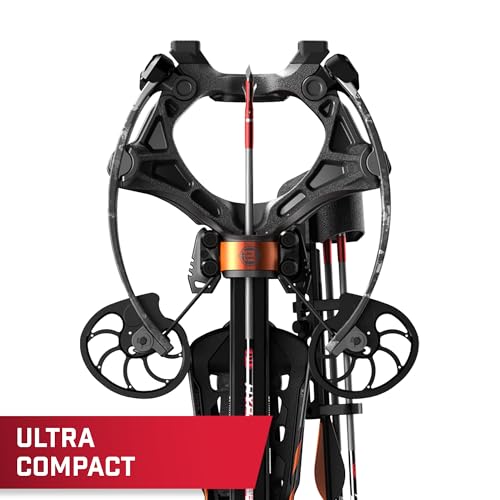

| Axle to axle | 7.25 in when cocked |
| Power stroke | 14 in |
| Draw weight | 214 lb |

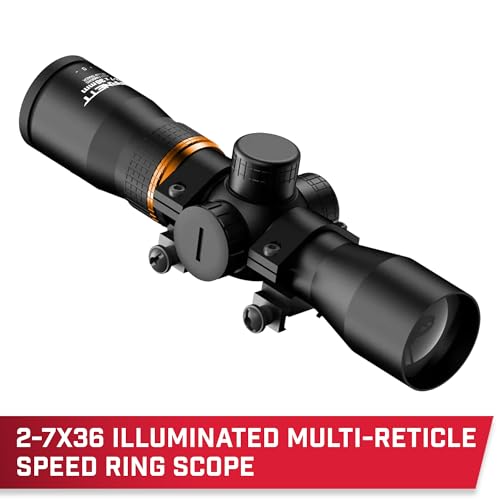

| Included optic | Barnett 2–7×36 illuminated multi-reticle Precision Scope |
| Trigger system | TriggerTech with anti-dry-fire protection |

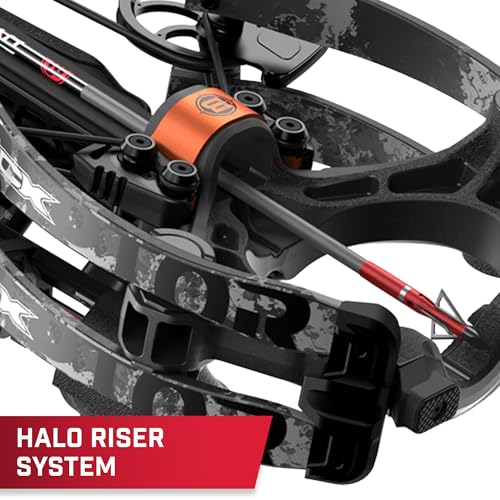

| Cam / cable system | Self-timing Infinity cams with Halo cable system |
| Included arrows | Three 20-inch HyperFlite .204 small-diameter arrows with field points |
What is included?

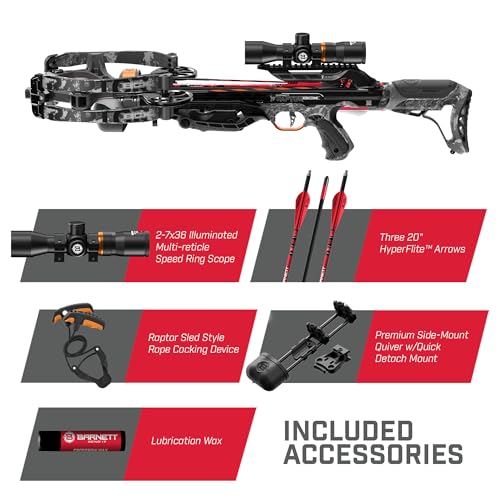

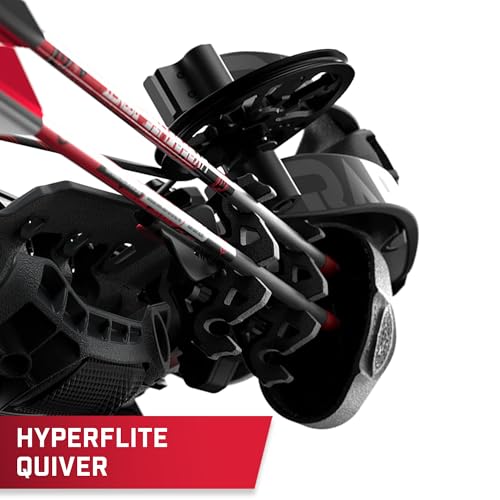

Barnett lists the Hyper Raptor BCX crossbow, 2–7×36 illuminated Precision Scope, three 20-inch HyperFlite arrows with field points, Hyper Raptor rope cocking device, premium quick-detach side-mount three-arrow quiver and lubrication wax. Broadheads, a case, target and crank cocking device are not listed. The stock has a crank-groove cord lock, but that feature should not be read as an included crank.
Handling and feature guide
| Feature | Practical role |
|---|---|
| 7.25-inch cocked width | Reduces side-to-side bulk in a blind or treestand; it does not replace muzzle and limb-clearance checks. |
| Variable 2–7× scope | Provides more magnification choice than a fixed 4× optic; it still must be mounted, leveled and sighted in for the chosen arrow setup. |

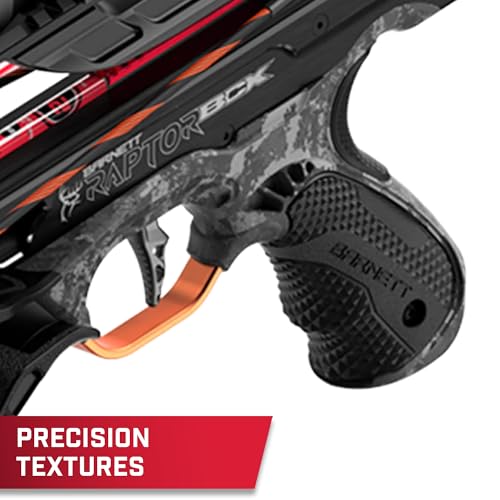

| Adjustable stock and foregrip | Supports a more personal fit while keeping the support hand below the string path. |
| TriggerTech anti-dry fire | Adds a mechanical safeguard, but never makes an unloaded trigger pull or unsafe hand position acceptable. |
Best for
Experienced, legally eligible crossbow hunters who want a narrow cocked profile, a variable-power illuminated scope and an exact factory package with HyperFlite arrows. It is especially relevant to searches for the Barnett Hyper Raptor BCX rather than older Raptor models.
May not suit
First-time users without qualified instruction, buyers who require an included crank, jurisdictions or seasons that restrict crossbows, or anyone without a target and backstop rated for high-energy crossbow bolts. Its maximum speed is a controlled manufacturer rating, not a guarantee with every arrow.
Assembly, sight-in and safe use
- Read the exact Barnett manual and safety materials before assembly, cocking or loading. Confirm all fasteners, scope rings, limb components, strings and cables are correctly installed.
- Use only arrow lengths, total weights and nock styles Barnett approves for BAR78238. Barnett documents the included 20-inch HyperFlite arrows and compatibility with specified Headhunter standard-diameter arrows using moon nocks; confirm any substitution directly with Barnett.
- Never dry-fire the crossbow. Anti-dry-fire is a backup device, not permission to pull the trigger without a correctly seated approved arrow.
- Keep fingers and thumbs below the flight deck and outside the string/cable path. Point in a safe direction and engage the safety until ready to fire.
- Sight in the scope from a close, controlled distance before extending the range. Use a crossbow-rated target and a reliable backstop; field points are not hunting broadheads.
- Before each use, inspect the arrow shaft and nock, string serving, cables, cams, limbs and fasteners. Stop immediately if anything is cracked, frayed, loose or out of time.
- Store uncocked, unloaded and locked away from unauthorized users. Follow all local transport, hunting-season and equipment rules.
Frequently asked questions
Is BAR78238 the Barnett Hyper Raptor BCX?
Yes. Barnett’s official record pairs BAR78238 and UPC 042609782383 with the Hyper Raptor BCX name.
How fast is the Hyper Raptor BCX?
Barnett rates it up to 425 fps using a 380-grain test arrow. Heavier arrows, accessories, string condition and other setup factors change actual velocity.
Which scope comes with this package?
The exact BAR78238 package includes a variable 2–7×36 illuminated multi-reticle Barnett Precision Scope, not the fixed 4×32 scope bundled with some other Barnett models.
Which arrows can the Hyper Raptor BCX use?
It ships with three 20-inch HyperFlite .204 small-diameter arrows. Barnett also states compatibility with specified Headhunter standard-diameter arrows using moon nocks. Never choose on diameter or length alone—confirm total weight, nock and model compatibility.
Which cocking device is included?
The official package includes a Hyper Raptor rope cocking device. A crank is not listed; the stock’s crank-compatible groove/cord-lock feature does not mean a crank is in the box.
Is the illuminated scope ready to hunt out of the box?
No optic should be assumed sighted in after shipping. Assemble and level it correctly, verify the reticle and battery, then sight it in with the exact arrow-and-point combination in a controlled range setting.
Official product and safety resources
Additional information
| Dimensions | 32.5 × 15.6 × 7.32 cm |
|---|
